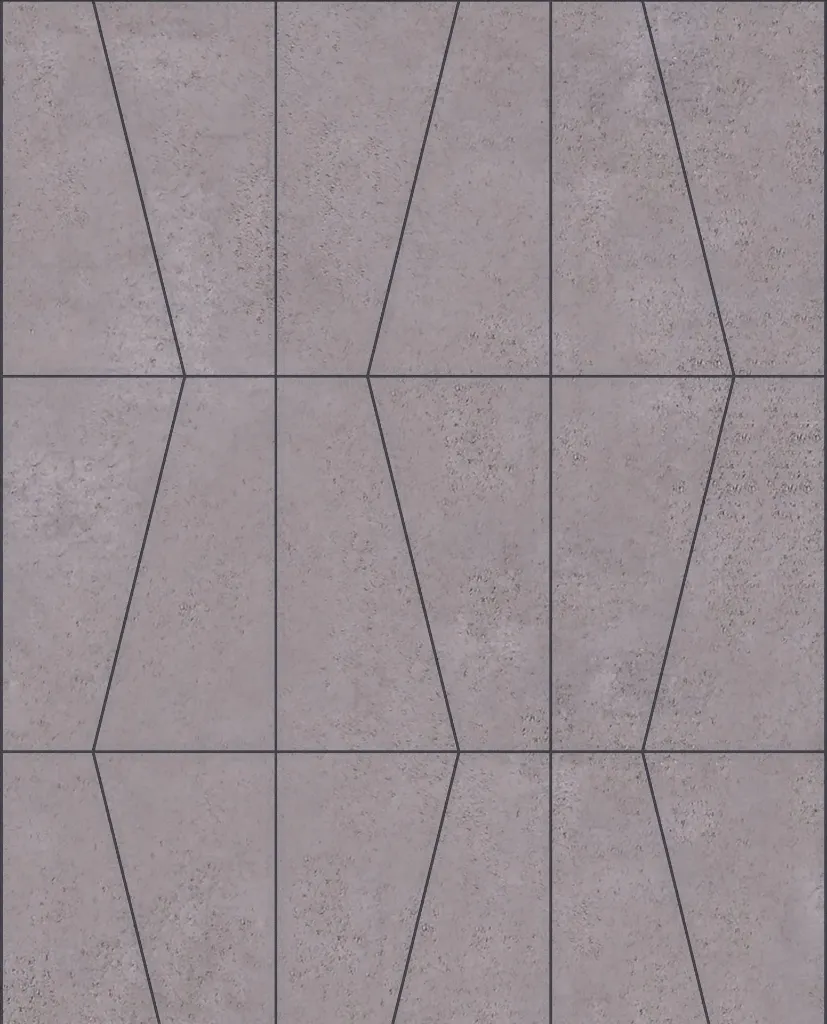

Permacon Vertex Slab is an innovative 24-inch trapezoidal concrete slab designed to create distinctive modern outdoor spaces. Its versatile geometric form supports a wide range of creative layouts, including stack-bond arrangements and accent patterns with compatible Melville 24×24, Esbelto, and Capio products.
Part of Permacon’s Smooth Collection, Vertex has a clean contemporary surface and can be installed mechanically to simplify placement. It is intended for pedestrian applications such as patios, walkways, courtyards, poolside spaces, and garden areas.
Available colors: Range Scandina Grey and Range Amber Beige.
Dimensions: 60 × 200–302 × 610 mm (2 3/8" × 7 7/8–11 7/8" × 24").
Nominal thickness: 60 mm (2 3/8").
Shape: Trapezoid.
Packaging:
• 80 units per pallet
• 1.65 sq. ft. per unit
• 13.17 sq. ft. per layer
• 131.7 sq. ft. per pallet
• 10 layers per pallet
• Approximate unit weight: 39 kg (85 lb)
• Approximate pallet weight: 1,725 kg (3,803 lb)
For installation, use proper base preparation and protect the finished surface with a removable rubber tread when compacting.
